Types of Impermeable Membranes Used in Farm Pond Construction

Farm ponds are important structures for harvesting and storing rainwater for irrigation, livestock, fisheries and other agricultural activities. However, water stored in a pond can be lost through seepage, particularly when the pond is constructed in sandy, gravelly or highly permeable soils. Impermeable membranes or geomembrane liners are used to create a barrier between the stored water and the surrounding soil, significantly reducing seepage losses. FAO identifies plastic and rubber sheets as common materials for lining ponds, while Indian standards also cover HDPE geomembranes specifically for ponds, canals and reservoirs.

Why are impermeable membranes used?

An impermeable membrane acts as a waterproof layer along the bottom and inner slopes of the farm pond. Instead of allowing water to gradually infiltrate into the soil, the liner retains the water within the pond. This is particularly useful where the natural soil has poor water-holding capacity.
The major benefits include:

• Reduction of seepage and water losses
• Better utilization of harvested rainwater
• Improved reliability of irrigation water
• Suitability for sandy and highly permeable soils
• Faster construction compared with some conventional lining methods
• Possibility of using the pond for multiple purposes such as irrigation and aquaculture

FAO notes that synthetic membranes can provide a more dependable seal and can greatly reduce seepage, although their susceptibility to puncture and sunlight exposure needs to be considered.

CONTACT:

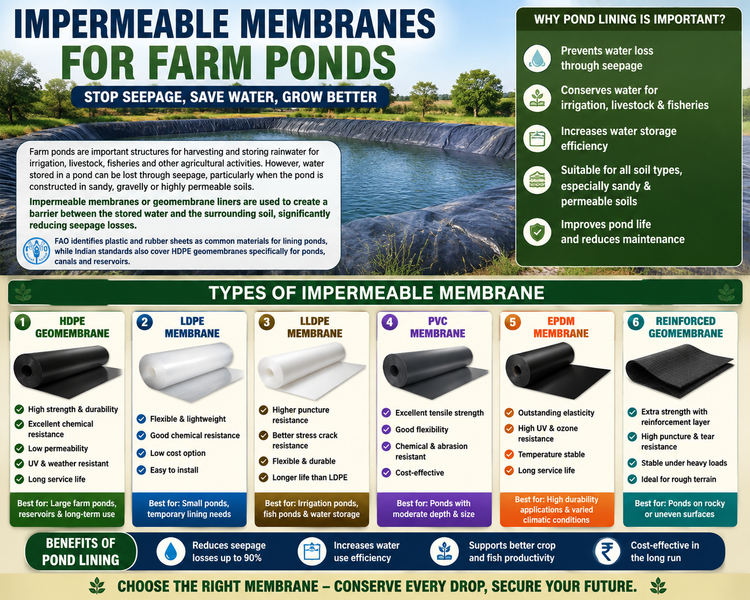

Major Types of Impermeable Membranes

1. HDPE Geomembrane

High-Density Polyethylene (HDPE) is one of the most widely used geomembrane materials for farm ponds. It is a strong plastic liner with good resistance to water, chemicals, weathering and UV exposure.
HDPE liners are particularly suitable for medium and large farm ponds where durability and resistance to mechanical damage are important. The Bureau of Indian Standards describes laminated HDPE woven geomembranes for waterproof lining of ponds, canals and reservoirs and specifies thickness categories including 0.25, 0.50, 0.75 and 1.00 mm.
Advantages:

• High tensile strength

• Good puncture resistance

• Good UV and weather resistance

• Suitable for large ponds

• Can be joined by heat welding

• Long service life when properly installed


Limitation: HDPE is relatively stiff compared with some flexible liners, so careful installation is required around corners and irregular pond shapes.

2. LDPE Geomembrane

Low-Density Polyethylene (LDPE) is a more flexible polyethylene membrane. Its flexibility allows it to conform relatively well to the contours of a farm pond.
LDPE liners can be useful for small and medium-sized agricultural ponds, particularly where flexibility and ease of handling are important.

Advantages:

• Flexible and easy to handle

• Good waterproofing ability

• Relatively easy to install

• Suitable for irregular pond surfaces

• Generally economical for smaller applications


Limitation: Compared with heavier-duty geomembranes, thinner LDPE sheets can be more vulnerable to puncturing and tearing if the subgrade is not properly prepared.

3. LLDPE Geomembrane

Linear Low-Density Polyethylene (LLDPE) combines the waterproofing properties of polyethylene with greater flexibility and elongation than conventional HDPE.
This makes LLDPE useful where the pond liner needs to accommodate minor settlement or movement of the soil without easily cracking or tearing.
Advantages:

• High flexibility

• Good elongation

• Good resistance to environmental conditions

• Suitable for ponds with uneven or complex shapes

• Good resistance to cracking


Limitation: Selection should be based on the pond's soil conditions, expected mechanical loading, UV exposure and required service life rather than simply choosing the most flexible material.

4. PVC Membrane

Polyvinyl Chloride (PVC) is another synthetic membrane used for pond lining. FAO specifically identifies PVC along with polyethylene and butyl rubber as commonly used synthetic pond-lining materials.
PVC is relatively flexible and can be shaped around corners and slopes, making it useful where installation requires considerable flexibility.
Advantages:

• Flexible

• Easy to handle

• Good waterproofing

• Can be fabricated or joined into larger panels

• Suitable for smaller and moderately sized ponds


Limitation: PVC formulations differ considerably in durability, and exposure to sunlight and environmental conditions should be considered when selecting the product.

5. EPDM / Butyl Rubber Membrane

EPDM (Ethylene Propylene Diene Monomer) and traditional butyl rubber liners are flexible synthetic rubber membranes. FAO lists butyl rubber among the common synthetic membrane materials used for pond sealing.
Their major advantage is their high flexibility, allowing them to follow changes in the pond surface and accommodate some movement without becoming excessively brittle.
Advantages:

• Highly flexible

• Good resistance to weathering

• Suitable for irregular pond shapes

• Can accommodate some ground movement

• Useful where flexibility is a major requirement


Limitation: Rubber membranes can be more expensive than some polyethylene alternatives, making cost an important consideration for large farm ponds.

6. Reinforced Geomembranes

Some pond liners consist of a woven fabric or reinforcement layer coated with polyethylene. These are different from simple plastic films because the reinforcement provides additional mechanical strength.
In India, BIS documentation describes laminated HDPE woven geomembranes specifically for waterproof lining applications. These membranes are designed with properties such as puncture resistance, hydrostatic resistance and UV resistance.
Advantages:

• Higher mechanical strength

• Better resistance to tearing

• Suitable for agricultural water-storage structures

• Available in different thicknesses

• Useful where the liner may experience mechanical stress


How is the Membrane Installed?

The effectiveness of a farm pond liner depends not only on the material but also on proper installation.
Basic installation flow
Site selection
↓
Pond excavation and shaping
↓
Removal of stones, roots and sharp objects
↓
Compaction and smoothing of subgrade
↓
Protective sand/geotextile layer where required
↓
Placement of impermeable membrane
↓
Joining/welding of membrane sheets
↓
Anchoring of edges in an anchor trench
↓
Inspection for punctures and defective joints
↓
Filling of pond
FAO recommends removing vegetation, stones and other sharp objects before placing a synthetic membrane. Where the soil is very stony or coarse, a finer cushioning layer can be provided below the membrane. The edges are also secured in an anchor trench around the pond.

Factors to Consider Before Selecting a Membrane

The best membrane is not necessarily the cheapest one. Farmers and engineers should consider:
Soil type – sandy and gravelly soils generally require stronger seepage-control measures.
Pond size – larger ponds may justify stronger geomembranes such as HDPE.
Expected soil movement – flexible materials may be advantageous where settlement is expected.
UV exposure – exposed liners require adequate UV resistance.
Puncture and tear resistance – important where the subgrade contains stones or other hazards.
Installation method – some materials require specialized welding or joining equipment.
Cost and availability – locally available materials can reduce transportation and installation  costs.

Intended use – irrigation, livestock, aquaculture and other uses may have different material and certification requirements.

Conclusion

Impermeable membranes have become an important option for reducing seepage losses from farm ponds, especially where natural soil cannot retain water effectively. HDPE, LDPE, LLDPE, PVC, EPDM/butyl rubber and reinforced geomembranes are among the major membrane options. HDPE is particularly attractive for agricultural water-storage structures because of its strength and durability, while flexible materials such as LLDPE and EPDM can be advantageous for irregular pond shapes or sites where some movement is expected.
Ultimately, selecting a pond liner should be based on soil conditions, pond size, expected service life, mechanical stresses, UV exposure, installation requirements and total cost, rather than material type alone. Proper subgrade preparation, joining, anchoring and protection are equally important for achieving a long-lasting, watertight farm pond.
