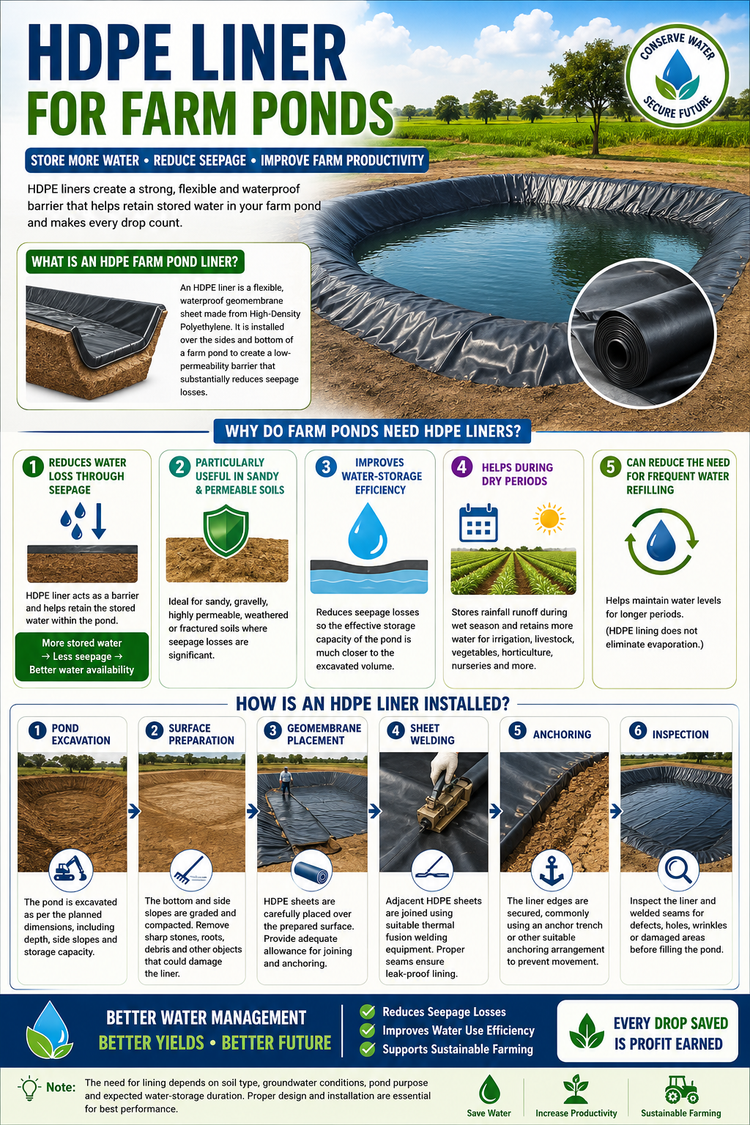

Why Farm Ponds Need HDPE Liners: Benefits, Applications and Cost Considerations
Farm ponds are increasingly used by farmers to harvest rainwater and store it for irrigation, livestock, fisheries and other agricultural activities. However, one of the major challenges in farm pond construction is water loss through seepage. When a pond is constructed in sandy, gravelly, fractured or highly permeable soil, a significant amount of stored water can infiltrate into the ground.
An HDPE (High-Density Polyethylene) geomembrane liner provides an effective impermeable barrier between the stored water and the surrounding soil. By reducing seepage, HDPE lining can help farmers retain more water and make better use of the available pond capacity.
CONTACT : 9063401379, FOR FARM POND CONSTRUCTION.
What Is an HDPE Farm Pond Liner?
An HDPE liner is a flexible, waterproof geomembrane sheet manufactured from high-density polyethylene. It is installed over the prepared sides and bottom of a farm pond to create a low-permeability barrier.
Unlike an unlined earthen pond, where water can gradually move through the soil, an HDPE-lined pond is designed to substantially reduce seepage losses.
Why Do Farm Ponds Need HDPE Liners?
1. Reduces Water Loss Through Seepage
The primary reason for using an HDPE liner is to control seepage.
In soils with high permeability, water can rapidly move away from the pond. This can reduce the amount of water available for irrigation, particularly during long dry periods.
An HDPE liner acts as a barrier and helps retain the stored water within the pond.
More stored water → Less seepage → Better water availability
2. Particularly Useful in Sandy and Permeable Soils
Not every farm pond requires a synthetic liner. Soil characteristics are an important factor in deciding whether lining is necessary.
HDPE liners can be particularly useful where the pond is constructed in:
- Sandy soil
- Gravelly soil
- Highly permeable soil
- Weathered or fractured ground
- Areas where seepage losses are significant
Before selecting a liner, farmers should assess the soil type, groundwater conditions, pond purpose and expected water-storage duration.
3. Improves Water-Storage Efficiency
The objective of a farm pond is not simply to collect water but to retain useful water until it is required.
If an unlined pond loses substantial quantities through seepage, the effective storage capacity may be much lower than the excavated volume.
An HDPE liner can help farmers make more effective use of the available pond storage.
4. Helps During Dry Periods
Rainwater availability is seasonal, while crop water requirements may continue for several months.
A properly designed and lined farm pond can store rainfall runoff during the wet season and retain a greater proportion of that water for later agricultural use.
This can be especially valuable for:
- Supplemental irrigation
- Vegetable cultivation
- Horticultural crops
- Nursery operations
- Livestock water supply
- Protected cultivation
5. Can Reduce the Need for Frequent Water Refilling
When seepage is high, farmers may need to refill the pond more frequently whenever additional water is available.
By reducing seepage, an HDPE liner can help maintain water levels for longer periods, although evaporation losses will still occur.
It is important to remember that HDPE lining does not eliminate evaporation. Pond design, depth, surface area and local climate continue to influence evaporation losses.
CONTACT : 9063401379, FOR FARM POND CONSTRUCTION.
How Is an HDPE Liner Installed?
Proper installation is just as important as selecting the correct liner.
Step 1: Pond Excavation
The pond is excavated according to the planned dimensions, including the required depth, side slopes and storage capacity.
Step 2: Surface Preparation
The pond bottom and side slopes should be properly graded and compacted. Sharp stones, roots, debris and other objects that could damage the liner should be removed.
Step 3: Geomembrane Placement
The HDPE sheets are carefully placed over the prepared pond surface. Adequate allowance should be provided for joining and anchoring.
Step 4: Sheet Welding
Adjacent HDPE sheets are joined using suitable thermal fusion welding equipment. Properly executed seams are critical to the performance of the lining system.
Step 5: Anchoring
The liner edges are secured, commonly using an anchor trench or another suitable anchoring arrangement, to prevent movement caused by wind, water or soil movement.
Step 6: Inspection
The liner and welded seams should be inspected for defects, holes, wrinkles or damaged areas before the pond is filled.
HDPE Liner vs. Unlined Farm Pond
| Factor | Unlined Farm Pond | HDPE-Lined Farm Pond |
|---|---|---|
| Seepage control | Depends heavily on soil | High seepage control when properly installed |
| Suitability for sandy soil | Often less suitable | Generally more suitable |
| Initial cost | Lower | Higher |
| Water retention | Soil-dependent | Improved |
| Installation | Relatively simple excavation | Requires additional liner installation |
| Maintenance | Mainly embankment and erosion control | Requires protection from punctures and damage |
| Long-term performance | Depends on soil conditions | Depends on liner quality and installation |
CONTACT : 9063401379, FOR FARM POND CONSTRUCTION.
What Thickness of HDPE Liner Is Required?
There is no single HDPE thickness suitable for every farm pond.
The appropriate thickness depends on factors such as:
- Pond dimensions
- Soil and subgrade condition
- Risk of puncture
- Installation method
- Expected service conditions
- Water depth
- Protection layer requirements
- Project budget
Common geomembrane thicknesses used in pond applications may include 0.5 mm, 0.75 mm, 1.0 mm, 1.5 mm and higher, but the correct specification should be selected based on the site and engineering requirements rather than choosing a thickness solely on price.
Other Important Advantages of HDPE Liners
Easy to Clean and Maintain
A properly constructed lined pond provides a relatively smooth surface that can make certain maintenance activities easier compared with heavily eroded earthen surfaces.
Protects Stored Water From Soil Contact
Because the water is separated from the underlying soil, the liner can also help reduce direct interaction between stored water and potentially contaminated or unsuitable subsoil. However, water quality still depends on the quality of incoming runoff and surrounding land management.
Suitable for Different Farm-Pond Uses
HDPE-lined ponds can be considered for several applications, including:
- Agricultural irrigation
- Rainwater harvesting
- Horticultural farms
- Livestock water storage
- Fish farming, subject to appropriate design and water-quality requirements
- Nursery irrigation
- Water storage for protected cultivation
Limitations and Precautions
Although HDPE liners offer significant benefits, they also require proper planning.
Initial Investment Is Higher
A lined pond costs more than a basic excavated earthen pond because expenses include the geomembrane, transportation, preparation, welding, anchoring and installation.
Puncture Protection Is Important
Sharp stones, roots and construction debris can puncture or damage the liner. Proper subgrade preparation and, where required, a suitable protective geotextile layer are therefore important.
Installation Quality Matters
Poor welding, inadequate anchoring or improper handling can reduce the effectiveness and service life of the lining system.
Evaporation Still Occurs
An HDPE liner mainly addresses seepage losses. It does not prevent water from evaporating from the pond surface.
HDPE Liner Cost for Farm Ponds
The total cost of an HDPE-lined farm pond depends on considerably more than the price per square metre of the liner.
Important cost factors include:
- Pond dimensions
- Liner thickness
- HDPE material grade
- Total lining area
- Subgrade preparation
- Geotextile requirement
- Welding charges
- Anchor trench construction
- Transportation
- Labour
- Site accessibility
Therefore, farmers should obtain a site-specific quotation rather than estimating the project solely from the liner's per-square-metre price.
Conclusion
HDPE liners can make farm ponds considerably more effective in areas where seepage is a major source of water loss. By creating an impermeable barrier between stored water and permeable soil, they help farmers retain water for longer periods and improve the practical value of rainwater harvesting.
However, HDPE lining is not automatically required for every farm pond. The decision should be based on soil type, seepage rate, rainfall, pond size, water demand, expected storage period and overall project economics.
For farmers constructing ponds in sandy or highly permeable soils, an appropriately designed and professionally installed HDPE geomembrane lining system can be an important investment in improving water-storage efficiency.
