Construction of Different-Sized Farm Ponds According to Utility and Farm Size

A farm pond is a small water-storage structure constructed within or near agricultural land to harvest rainwater and store it for use during dry periods. The appropriate size of a farm pond depends on several factors, including the farmer’s landholding, rainfall, soil type, available runoff, crop water requirement, topography and intended purpose.
A well-designed farm pond should not simply be made as large as possible. The pond should be sized according to the amount of runoff that can realistically be harvested and the quantity of water the farmer can use efficiently.

CONTACT:9063401379 FOR FARM POND CONSTRUCTION

Why Farm Pond Size Matters

The size of a farm pond directly affects its construction cost, storage capacity, land requirement and usefulness. A small farmer may not benefit from constructing a very large pond because it occupies productive land and requires higher investment.
Similarly, a large farm with extensive irrigation requirements may require a larger storage structure to provide adequate water during dry periods.
The basic relationship can be represented as:
Farm size + Rainfall/runoff + Soil + Crop requirement + Utility → Pond size
Therefore, farm ponds should ideally be designed on a site-specific basis rather than using a single standard dimension for every farmer.

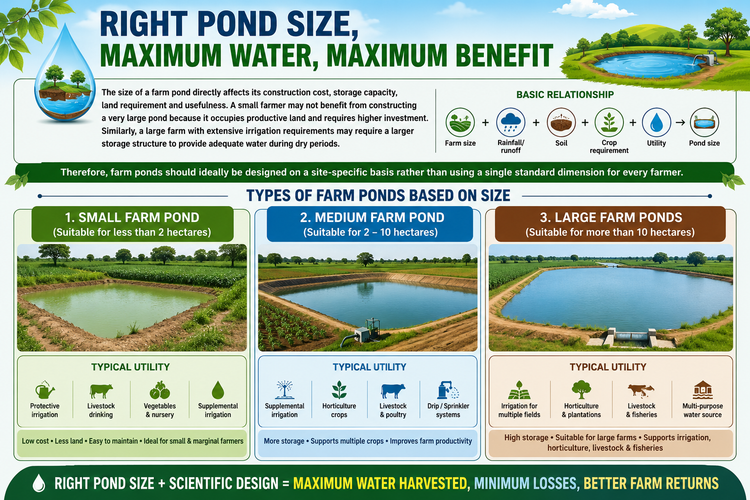

Farmpond classification

Small Farm Ponds

Suitable farm size: Less than 2 hectares
Small farm ponds are particularly useful for small and marginal farmers who need a limited quantity of water for protective irrigation.
A small pond can be constructed in a corner or relatively low-lying portion of the farm so that it captures runoff without unnecessarily occupying productive land.
Typical utility
Rainfall
↓
Runoff collection
↓
Small farm pond
↓
Stored water
↓
Protective irrigation during dry spells
The stored water can be used for vegetables, horticultural crops, nursery plants, livestock and supplemental irrigation for field crops.
Construction considerations

• Select a naturally low-lying location.

• Ensure adequate runoff reaches the pond.

• Compact the embankment properly.

• Provide an inlet to safely convey runoff.

• Provide an outlet/spillway for excess water.

• Use a suitable lining where soil permeability is high.

• Protect the embankment from erosion.


For very small holdings, farm ponds can also be integrated with drip or sprinkler irrigation to obtain more crop area from a limited quantity of stored water.

CONTACT:9063401379 FOR FARM POND CONSTRUCTION

Medium Farm Ponds

Suitable farm size: 2–10 hectares
Medium-sized ponds are suitable for farmers who require water for supplemental irrigation across a larger cultivated area.
These ponds can store substantially more runoff and may support crops such as cotton, maize, pulses, vegetables, fruits and other horticultural crops, depending on local conditions.
Typical utility
Farm runoff
↓
Inlet/filter structure
↓
Medium farm pond
↓
Pump/lift irrigation
↓
Drip/sprinkler system
↓
Crop + horticulture + livestock
Construction considerations

Medium ponds require greater attention to:

• Catchment area

• Embankment stability

• Pond depth

• Side slopes

• Spillway capacity

• Seepage control

• Pumping arrangements


Where seepage losses are high, an HDPE, LDPE, LLDPE or other suitable geomembrane liner can be considered after evaluating soil and site conditions.

CONTACT:9063401379 FOR FARM POND CONSTRUCTION

Large Farm Ponds

Suitable farm size: More than 10 hectares
Large farm ponds are appropriate where the farmer has a substantial cultivated area and sufficient runoff is available to fill the pond.
They can provide water for supplemental irrigation, horticulture, livestock and other farm activities. However, constructing a large pond requires careful engineering because failure of a large embankment can create significant downstream risks.
Typical system
Large catchment
↓
Runoff collection
↓
Silt trap
↓
Inlet structure
↓
Large storage pond
↓
Pump + irrigation system
↓
Multiple crop fields
Large ponds should normally include properly designed spillways, inlet structures, embankments and erosion protection.

CONTACT:9063401379 FOR FARM POND CONSTRUCTION

How Should a Farmer Decide the Pond Size?

A simple decision-making framework is:
Small farm + low water requirement
→ Small pond
→ Protective irrigation/livestock
Medium farm + moderate water requirement
→ Medium pond
→ Supplemental irrigation/horticulture
Large farm + high water requirement
→ Large pond
→ Irrigation + horticulture + livestock/fisheries

But there is one important point:

Farm area should not be the only basis for determining pond capacity.
For example, two farmers with the same 5-hectare farm may need completely different pond sizes if one is located in a high-rainfall area with a large catchment and the other is in a low-rainfall area with limited runoff.
Factors Affecting Final Pond Dimensions

The final design should consider:

1. Farm size
   Larger cultivated areas generally require greater water storage.
   2. Rainfall
   Higher rainfall can provide greater runoff potential, but rainfall distribution is also important.
   3. Catchment area
   A larger catchment can supply more runoff to the pond.
   4. Soil type
   Permeable soils may require lining to reduce seepage.
   5. Crop water requirement
   Water-intensive crops require more storage than drought-tolerant crops.
   6. Topography
   Natural depressions and slopes can reduce construction requirements.
   7. Evaporation
   Large exposed water surfaces can lose considerable water through evaporation, particularly in hot and dry regions.
   8. Available land
   The pond should not unnecessarily occupy productive agricultural land.
   9. Construction budget
   The size and lining system should be financially feasible for the farmer.
   10. Intended utility
   Irrigation, livestock, fisheries and multiple-use ponds have different design requirements.

Conclusion:

Farm ponds are most effective when their size, design and construction are matched with the farmer's landholding, water requirement and intended utility. Small ponds can support protective irrigation and livestock needs on small farms, while medium ponds can provide supplemental irrigation and support horticulture. Larger farms with greater runoff and water requirements may benefit from larger, properly engineered storage ponds.
The ideal approach is not simply to construct the largest possible pond. Instead, farmers should follow the principle:
Farm size + Rainfall + Catchment + Soil + Crop requirement + Utility + Budget
↓
Scientifically designed farm pond
↓
Maximum water harvested + Minimum losses + Efficient farm utilization
Before construction, the final dimensions, embankment, spillway and storage capacity should be determined through a site-specific technical survey and appropriate local engineering/agriculture guidelines. This ensures that the investment is safe, economically viable and capable of providing water when the farm needs it most.
